Pallet rack, also know as “box beam rack” is the most common pallet storage racking found in warehouses today.It is designed to maximise your space and make your job done easier!
All composite racking structure, fit for much higher warehouse, storage goods by manual and storage generous quantity goods.The shelves in first layer not only for storing goods, but also for supporting the second layer.
Steel structure garret is suit for high warehouse, light cargo, pick by man and large storage quantity situation, which can increase the using space.
If our warehouse space is limit, we need to find a way to make full use of the storage space. Actually, the long span shelf, can improve our warehouse space in an efficient way.
Lead Time:
25 working daysProduct Orgin:
ChinaBrand:
HLDShipping Port:
HuangpuPayment:
T/TPrice:
$60/50/setMarket Price:
$90Price Range:
40-60/1000$Color:
Orange and blueFlow through racking:

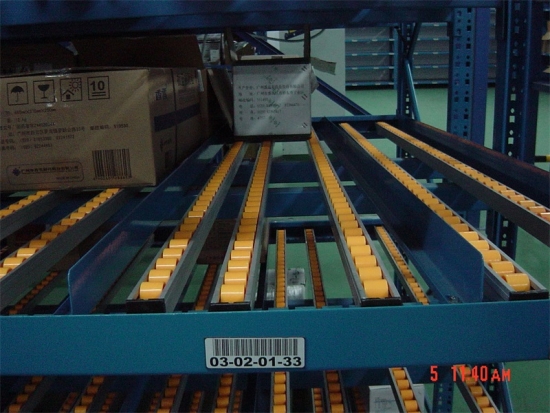

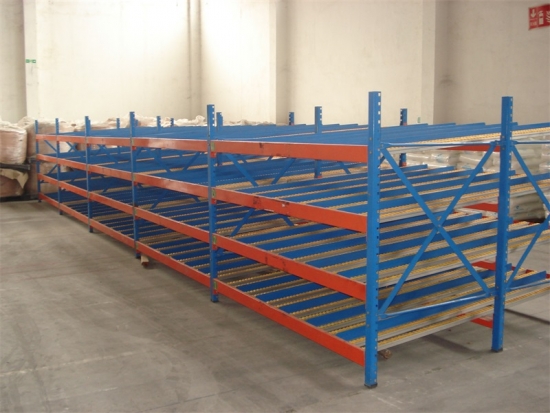

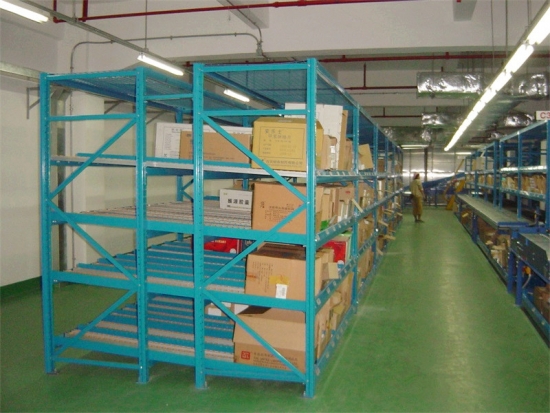

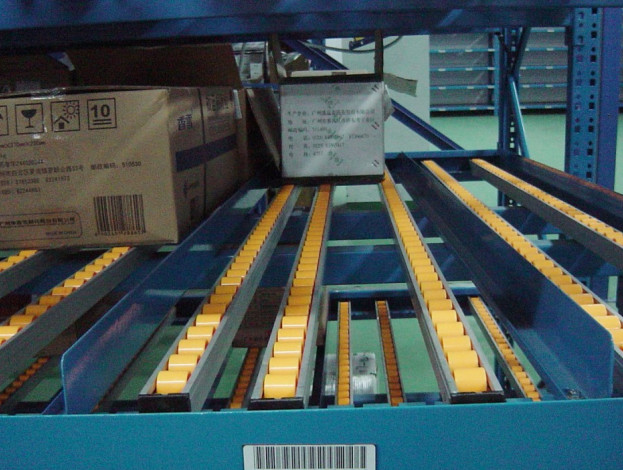

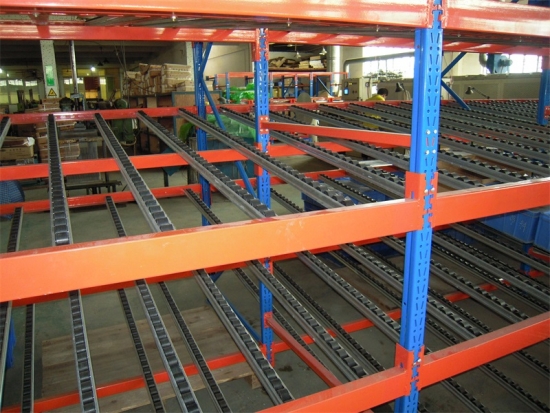

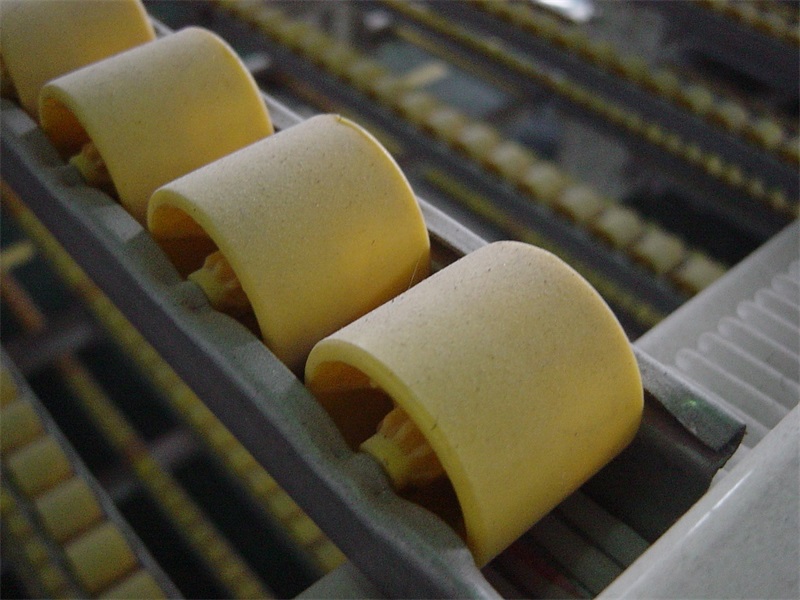

Warehouse Pallet Flow Rack is evolved from the medium storage rack. The fluency strips are connected directly to the front and rear beam and also the middle support beam, then the beam directly hung on the uprightpost. The installation slope of fluency strip depends on the size, weight, packing case and the depth of the pallet flow rack, usually take 5% ~ 9%.Normally, the bearing capacity of a fluency strip roller is 6kg/ piece.If the goods are heavy, 3-4 pieces of the fluency strip can be installed in one raceway.A supporting beam is usually installed at a depth every 0.6m to increase the rigidity of the fluency bar.If the raceway is long, it can also be separated by partition.Brake plates shall be installed at the pickup end to slow down the goods and reduce the impact.Usually, there are 4 dimensions of this kind of racks: 1500*500*2000mm,1500*600*2000mm,2000*500*2000m,2000*600*2000mm.
Customized Pallet Flow Rack is available.
Product Names:
Flow-through Racking, Flow through rack,
storage through racking, warehouse rack system.
Features of flow through rack:
1. Using aluminum or steel rail system, and the influence of gravity, first in and first out principle for the goods is implemented.
2. Its widely used in supermarket, medicine, and chemical and electron industries.
3. Major components of flow-through racking include the body, rail track, hoop, and roller and so on.
4. Convenient to access and suitable for such places as the two sides of the assembly line and distribution center.
5. Mark: Non-standard specification is available.
We offer design customized, so need following rack's factor:
Any types of heavy duty shelving, wire rack ,warehouse shelves,also parts for it like beams , upright post .etc...
Weight of goods( include pallet or container)
Dimension of pallet and goods(WxDxH)
Pallet's entrance of fork direction
Storage ares( Length, wide, height)
Type and parameter of forklift( include lift height and turn radius)
Storage goods quantity and storage requirement.
Sample :
We will send you sample for your reference, but have to pay from your side;
And we will refund the fee once you have an order with us!
Services:
Our free services include consultations and sample CAD layouts
of your proposed rack system. Don't hesitate to consider reviewing
the racking systems on site or at our headquarters.
Get the racking system you need at the best price guaranteed.
Use slid structure, suitable use for storage mould and heavy duty goods, with safe credibility, convenience operation and strong load capacity.
it is suitable for place of assembly line, logistic distribution center, convenient storage, save space and upgrade efficiency.
Specification: W*D*H: 1100*600*1950mm 3 adjust panel Design for factory storage goods, solid structural, safe and flexible; Modulus of panels adjustable to facilitate storage of different sizes goods ;Leeveraged lock, Doors can flexible open and firmly closed; Can be configured hanging board , accessory boxes and pothook to make full use of space.
Specification(W*D*H): 1400*545*1105mm Drawers: Medium: 5*120, 2*200mm;Left and Right: 3*160mm Feature: 1.High quality steel and special surface treatment which may be suitable for different operating environment. 2.A variety of specifications of cabinets and drawers can be free combination, meet the needs of different use of demand.
Specification: 1500*750*800 (W*D*H )mm Special customized storage workbench for warehouse Solid workbench's framework which can be loading 1000kg; A variety of desktop options, with the use of different requirements; With the sockets on table's leg, convenience for operation; A variety of standard accessory: hanging board, tool cabinets, lamps, for1
Specification: Height: 970mm Drawers: 5 The most widely used series specifications (WxD)(mm): 760x705； Height of trolley's body=top frame 25mm+cabinet's height+castor 145mm' Heavy duty trolley use double-huide rail's drawer, can open 100%, drawer's oad capacity:90kg/drawer; Light duty trolley use single guide rial drawer, can be open 100%, drawer's1
