/Storage Rack /Drive in racks /

Drive In Pallet Racking Warehouse Design

Drive in racks

Storage commercial drive in rack
  • Storage commercial drive in rack
  • Storage commercial drive in rack
  • Storage commercial drive in rack
  • Storage commercial drive in rack
  • Storage commercial drive in rack

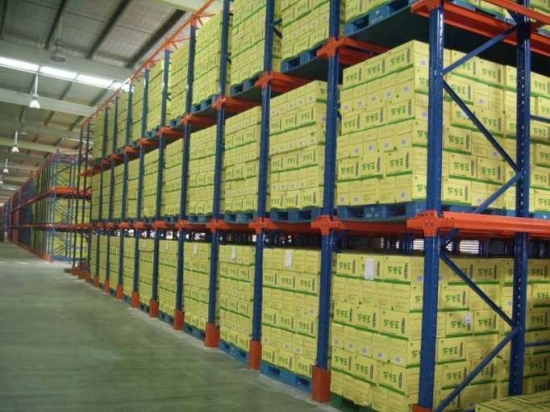

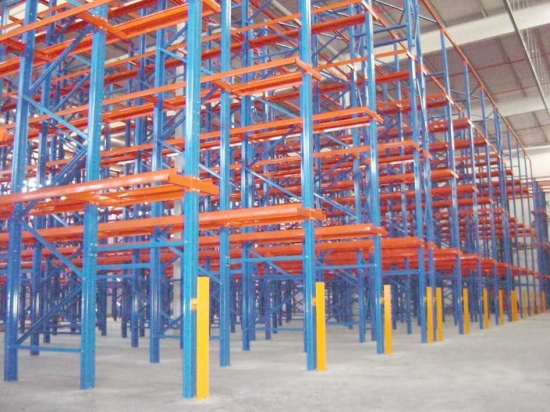

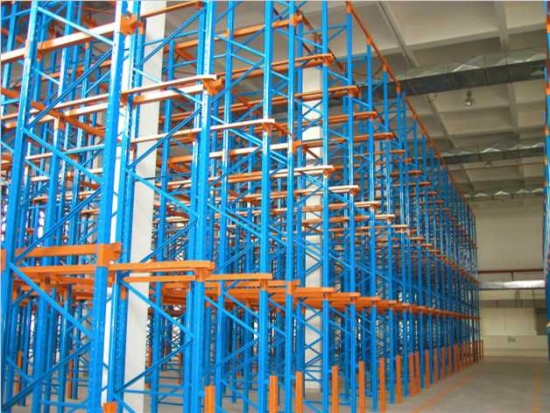

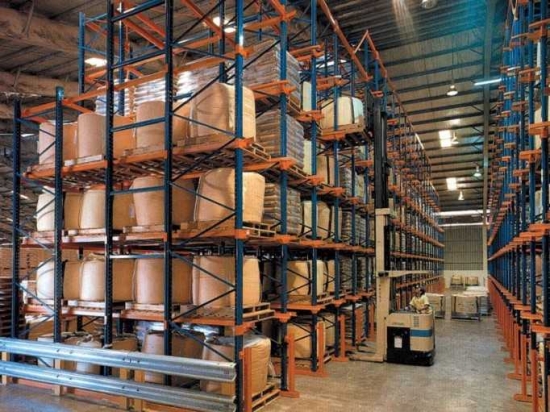

Drive In Pallet Racking Warehouse Design

Drive-in rack is also called drive-in pallet rack, it is best suited for large quantities of the same product. This kind of racking has the same advantage as block stacking, without sacrificing the height.

  • Lead Time:

    25 working days
  • Product Orgin:

    China
  • Brand:

    HLD
  • Shipping Port:

    Huangpu
  • Payment:

    T/T
  • Price:

    $150/150/set
  • Market Price:

    $160
  • Price Range:

    149-200/1000$
  • Color:

    Orange and blue
  • Product Details

Professional design for warehouse commercial drive in rack


Warehouse drive in racking is designed for storage few varieties and large quantities of similar goods with very high space utilization the forklift truck can drive into lane to storage goods, goods are storage and remove from the same side, or done from opposite side in accordance with the 'first-in first-out' principle.


Product Name:

Drive in racking/storage rack/warehouse rack/warehouse storage rack/ selective drive in rack/drive in warehouse racking


Features of drive in racking:

Used in conjunction with special purpose pallet handling equipmentwhich may require guidance, by electronic wire or by steel rail.Pallet support rail is punched and roll formed, so it has thecharacter of long inertial distance/strong load capacity.Be used in food industry, chemical industry, clothes industry and freeze warehouse and so on.

selective drink in pallet racking system

Picking direction has single and double rows. Single one (near wall) depth is not exceed 6 pallet depth.

Double one(middle area can pick goods) depth is better control in 12 pallet depth.This kind system usually not exceed 10 meter high. To fasten it, not only need the strongstructure, but also need to add fix equipment. Goods is better not too big and too weight,usually less than1500kg. The width is not excees 1.5 meter. And can work in trucks.

Drive in warehouse racking


We offer design customized drive in rack, so need following rack's factor:

Weight of goods( include pallet or container)
Dimension of pallet and goods(WxDxH)
Pallet's entrance of fork direction
Storage ares( Length, wide, height)
Type and parameter of forklift( include lift height and turn radius)

Storage goods quantity and storage requirement.

drive in racking


Sample :

we will send you sample for your reference, but have to pay from your side;

And we will refund the fee once you have an order with us!


Services:

Our free services include consultations and sample CAD layouts

of your proposed rack system. Don't hesitate to consider reviewing

the racking systems on site or at our headquarters.

Get the racking system you need at the best price guaranteed.

Inquiry Now

Subject : Drive In Pallet Racking Warehouse Design

Email : Tel : Message :
Related products

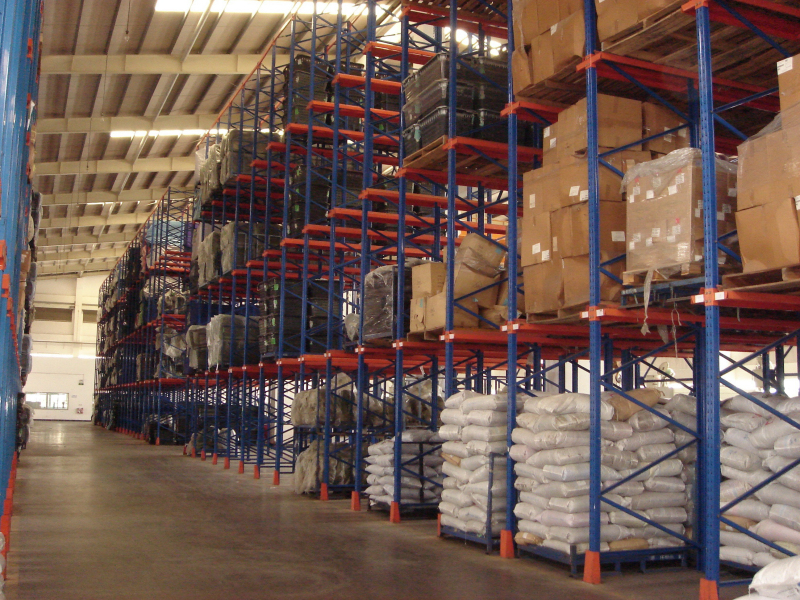

Drive in Heavy Duty Pallet Rack
