Double-deep Pallet rack


Steel metal industrial pallet rack
  • Steel metal industrial pallet rack

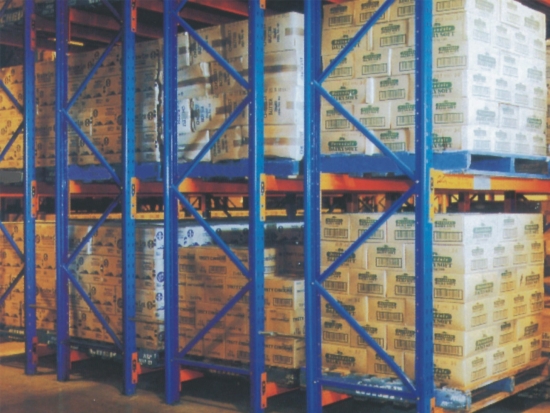

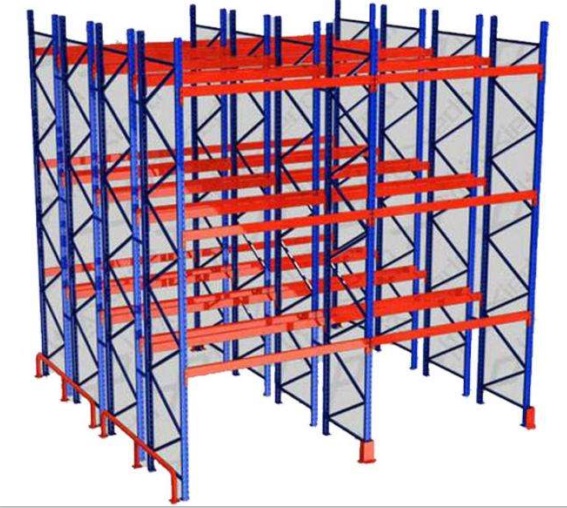

Double-deep Pallet rack

Double-deep pallet racking is derive from pallet racking, the goods are constructed to store two pallets deep. or four pallets deep in a double entry rack. the rack requires using forklift truck with dual pantograph and sliding fork to storage goods, in the same area condition that they can storage more max 30% storage quanrity, but only 50% goods can storage and get at once .

  • Lead Time:

    25 working days
  • Product Orgin:

  • Brand:

  • Shipping Port:

  • Payment:

  • Color:

    Orange and blue
  • Product Details

Steel metal industrial pallet rack

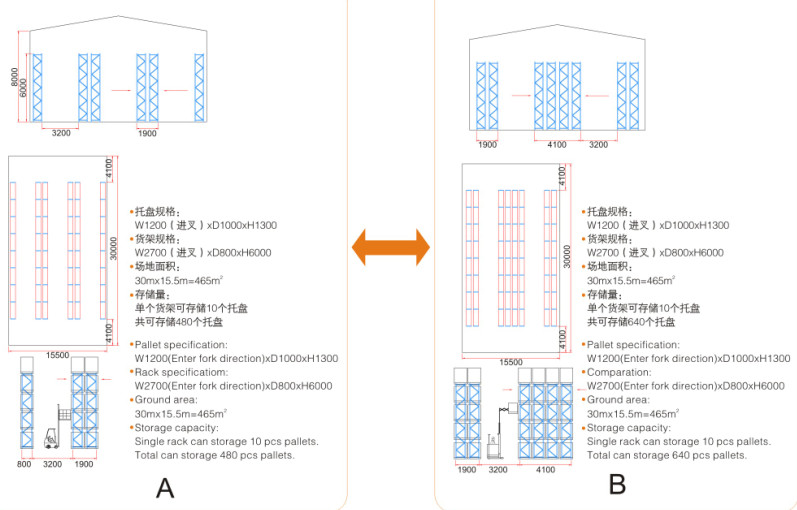

Pallet specification

W1200(enter fork direction)xD1000xH1300


W2700(enter fork direction)xD800xH6000

Ground area:

30m X15.5=465m2

Storage capacity:

Single rack can storage 10pcs pallets.

Total can storage 640pcs pallets.

pallet storage shelves

Features of pallet racking:

1) Pallets can be located, accessed and moved individually.

2) Rapid handling of almost all types of palletized goods.
3) Infinitely adjustable and offering a wide range of options and
components to accommodate specialized needs.
4) Maximizes space use in any warehouse configuration
while retaining optimum product accessibility.
5) Strength and rigidity prevents compression damage to goods.
6) Bottom level of pallets can be stored on the floor, lowering

structure costs.

Industrial Heavy Duty Warehouse Racks

We offer design customized, so need following rack's factor:

Any types of racks,shelves, adjustable storage racks ,warehouse shelves,also parts for it like beams , upright post .etc...

Weight of goods( include pallet or container)

Dimension of pallet and goods(WxDxH)

Pallet's entrance of fork direction

Storage ares( Length, wide, height)

Type and parameter of forklift( include lift height and turn radius)

Storage goods quantity and storage requirement.

Sample :

we will send you sample for your reference, but have to pay from your side;
And we will refund the fee once you have an order with us!

Our free services include consultations and sample CAD layouts
of your proposed rack system. Don't hesitate to consider reviewing
the racking systems on site or at our headquarters.

Get the racking system you need at the best price guaranteed.
